ISO Standard Long Service Life Durable Marine Rubber Airbag
Marine Rubber Airbags
Marine Rubber Airbag is China independent intellectual property
rights of innovative products, the products are mainly applied to
ship launching and landing, weight lifting, handling, installation
of underwater buoyancy aid etc. Nowadays, Marine rubber airbags are
widely used in the world. The Products are less limited by space,
no large mechanical equipment, can shorten the working period and
save the unnecessary cost. Through years of development practice,
marine rubber airbag is become more safety, effective and green
environmental protection.
6000 years ago, our ancestor begin to use log-rolling method to
lift and move weights, which is still widely used in daily
production and actual life nowadays. Marine rubber airbag is
designed with soft rubber to lift and carry weights, based on
log-rolling method.
Marine rubber airbag is an innovative product of Chinese own
proprietary intellectual property rights. It has wide application
like ship launching & upgrading, caisson lifting & moving, heavy
weights lifting, underwater-engineering buoyancy aid. The marine
rubber airbag is not limited to space and heavy machinery, which
could efficiently shorten the construction period and save lots of
funds.

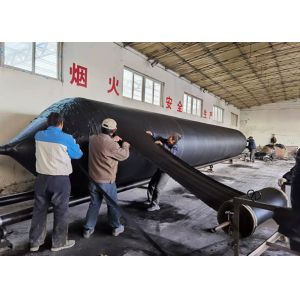

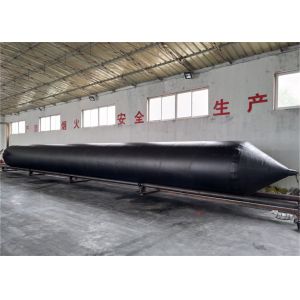

Marine Rubber Airbag also known as rubber airbag, ship air bags,
ship launching airbag, ship salvage airbag, boat salvage airbags,
inflatable airbag, ship lifting bag, air balloon, made by rubber &
multi layer of rubber-dipped tyre fabric.
Marine Rubber Airbag are widely used in launching and landing ship/
boat/vessel, lifting and moving heavy goods, salvaging stranded
boats.
Marine Rubber Airbag are very popular with shipyard, ship owner,
and marine supplies company now.
Marine Rubber Airbag Application

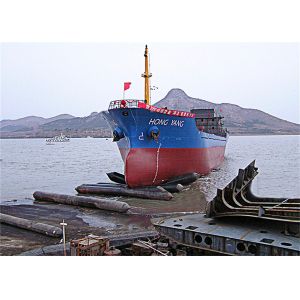

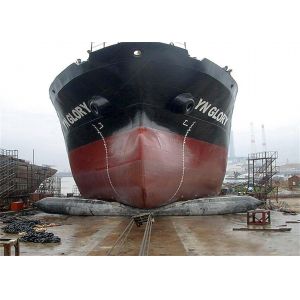

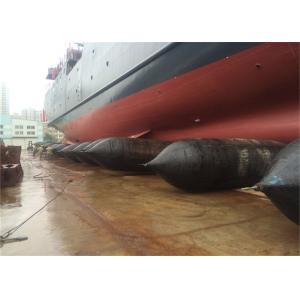

1.Ship Launching & Upgrading
With more than 20 years development in China, marine rubber airbag
is proved to be the most reliable and stable technique for ship
launching & upgrading. It is applicable from tons of flat board to
ten thousand tons of huge ship. Meanwhile, marine rubber airbag is
also widely acknowledged by foreign dockyards, shipyards,
port/harbour construction companies. Ship launching & upgrading
technique with marine rubber airbag is also highly promoted in the
markets, such as America, Europe, Southeast Asia.
2.Weight Lifting & Moving
Marine rubber fend could be applied to caisson lifting, launching,
moving and transporting in port constructing projects.
3.Buoyancy Aid & Salvage
Because marine rubber airbag has buoyancy force and load-bearing
capacity, it is also widely used in sunken vessel salvage and
Buoyancy Aid.
| Diameter(m) | Effective Length(m) | Layer | Pressure(MPa) |
| 1.0 | 10 | 5~6 | 0.07~0.10 |
| 1.0 | 12 | 5~6 | 0.07~0.10 |
| 1.0 | 15 | 5~6 | 0.07~0.10 |
| 1.2 | 10 | 5~6 | 0.08~0.12 |
| 1.2 | 12 | 5~6 | 0.08~0.12 |
| 1.2 | 15 | 5~6 | 0.08~0.12 |
| 1.5 | 12 | 5~8 | 0.08~0.16 |
| 1.5 | 15 | 5~8 | 0.08~0.16 |
| 1.5 | 18 | 5~8 | 0.08~0.16 |
| 1.5 | 20 | 4~8 | 0.08~0.16 |
| 1.5 | 24 | 5~8 | 0.08~0.16 |
| 1.8 | 12 | 5~8 | 0.08~0.15 |
| 1.8 | 15 | 5~8 | 0.08~0.15 |
| 1.8 | 18 | 5~8 | 0.08~0.15 |
| 1.8 | 20 | 5~8 | 0.08~0.15 |
| 1.8 | 24 | 5~8 | 0.08~0.15 |
| 2.0 | 18 | 6~10 | 0.08~0.18 |
| 2.0 | 20 | 6~10 | 0.08~0.18 |
| 2.0 | 24 | 6~10 | 0.08~0.18 |
| 2.5 | 18 | 7~10 | 0.07~0.13 |
| 2.5 | 20 | 7~10 | 0.07~0.13 |
| 2.5 | 24 | 7~10 | 0.07~0.13 |
